PU-100 Series
An UPS system with high safety, efficiency, availability and intelligence is required to meet the increasing demand of a data center for greener, more efficient and energy-saving facilities for servers.

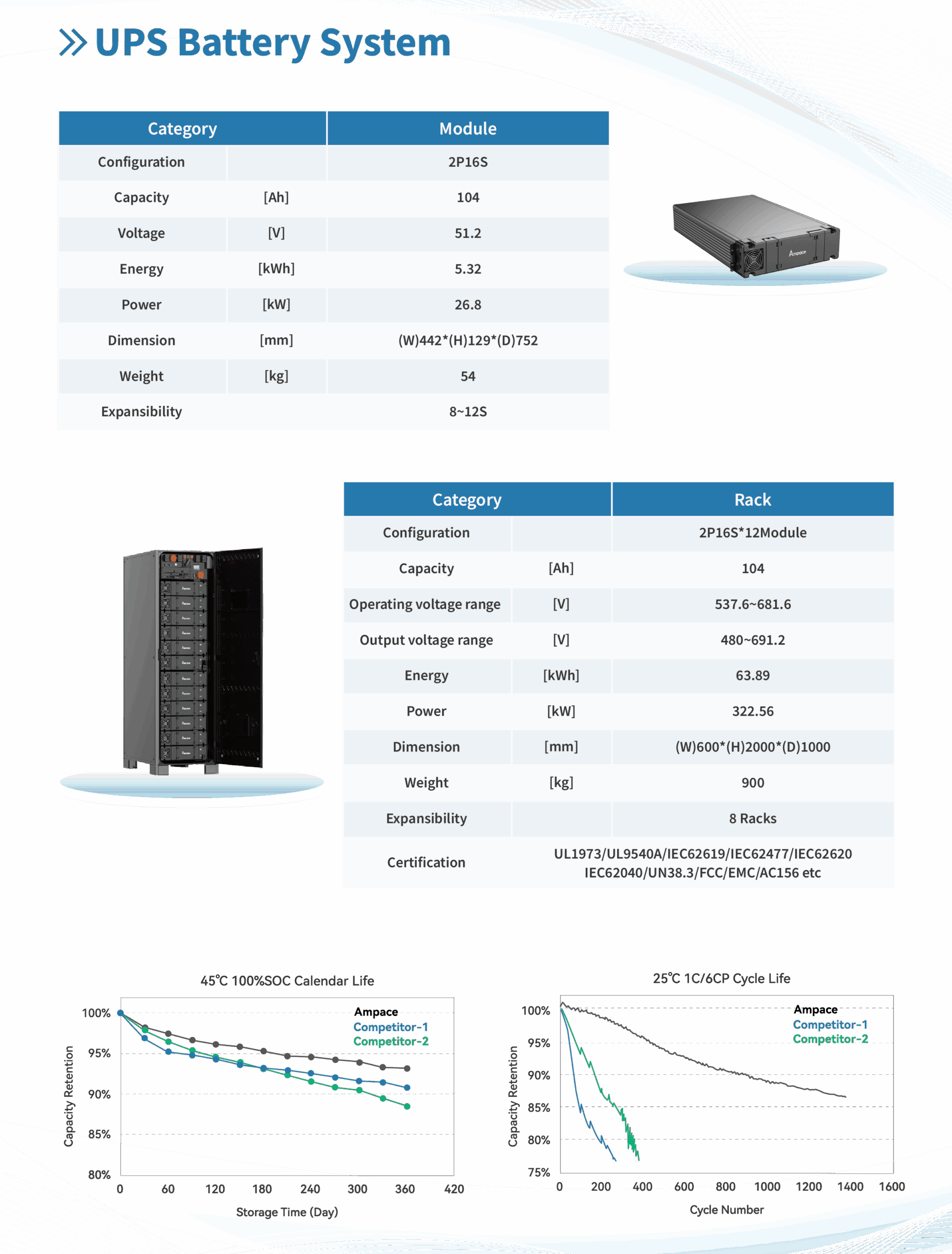

Module Specifications
| Item | Specifications |
|---|---|
| Configuration | 2P16S |
| Nominal capacity (Ah) | 104 |
| Nominal voltage (V) | 51.2 |
| Nominal energy (kWh) | 5.32 |
| Nominal power (kW) | 26.8 |
| Dimension (mm) | (W)442*(H)129*(D)752 |
| Weight (kg) | 54 |
| Expansibility | 8~12S |
Rack Specifications
| Item | Specifications |
|---|---|
| Configuration | 2P16S*12Module |
| Nominal capacity (Ah) | 104 |
| Operating voltage range (V) | 537.6~681.6 |
| Output voltage range (V) | 480~691.2 |
| Nominal energy (kWh) | 63.89 |
| Nominal power (kW) | 322.56 |
| Dimension (mm) | (W)600*(H)2000*(D)1000 |
| Weight (kg) | 900 |
| Expansibility | 8 Racks |
| Certification | UL1973/UL9540A/IEC62619/IEC62477/IEC62620/ IEC62040/UN38.3/FCC/EMC/AC156 etc |
