S500D
Outdoor Battery Cabinet
Supports microgrid, peak-shaving, demand response, VPP and other applications in schools, shopping malls, hospitals, factories and other places.
Battery Cabinet Specifications
| Item | Specifications |
|---|---|
| Nominal Voltage (V) | 1331.2 |
| Voltage Range (V) | 1164.8~1497.6 |
| Max. CP-rate (CP) | 0.25 (4hr) / 0.5 (2hr) |
| Energy (kWh/unit) | 532.48 |
| Dimension (mm) | (W)2200*(H)2443*(D)1400 |
| Weight (kg/unit) | 6000 |
| Max. number in parallel | 16 (4hr) / 8 (2hr) |
| IP rating | IP54 |
| Certification | IEC62619/UL1973/UL9540A/UN38.3 |
Combiner Cabinet Specifications
| Item | Specifications |
|---|---|
| Max. DC voltage (V) | 1500 |
| DC current (A) | 914*2 |
| DC branch | 2 |
| Dimension (mm) | (W)1800*(H)2443*(D)1000 |
| Weight (kg/unit) | 1400 |
| IP rating | IP55 |

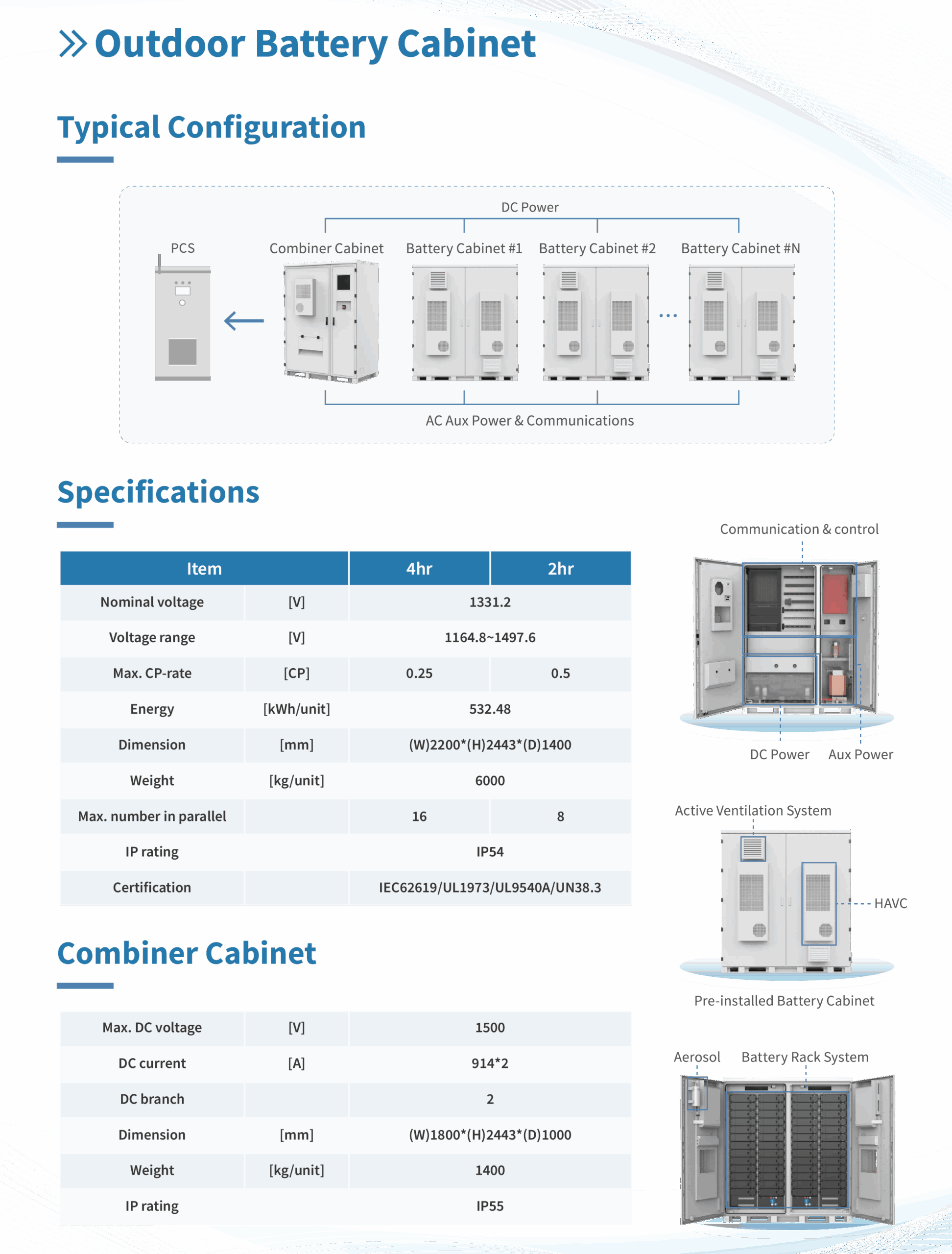

Typical Configuration
