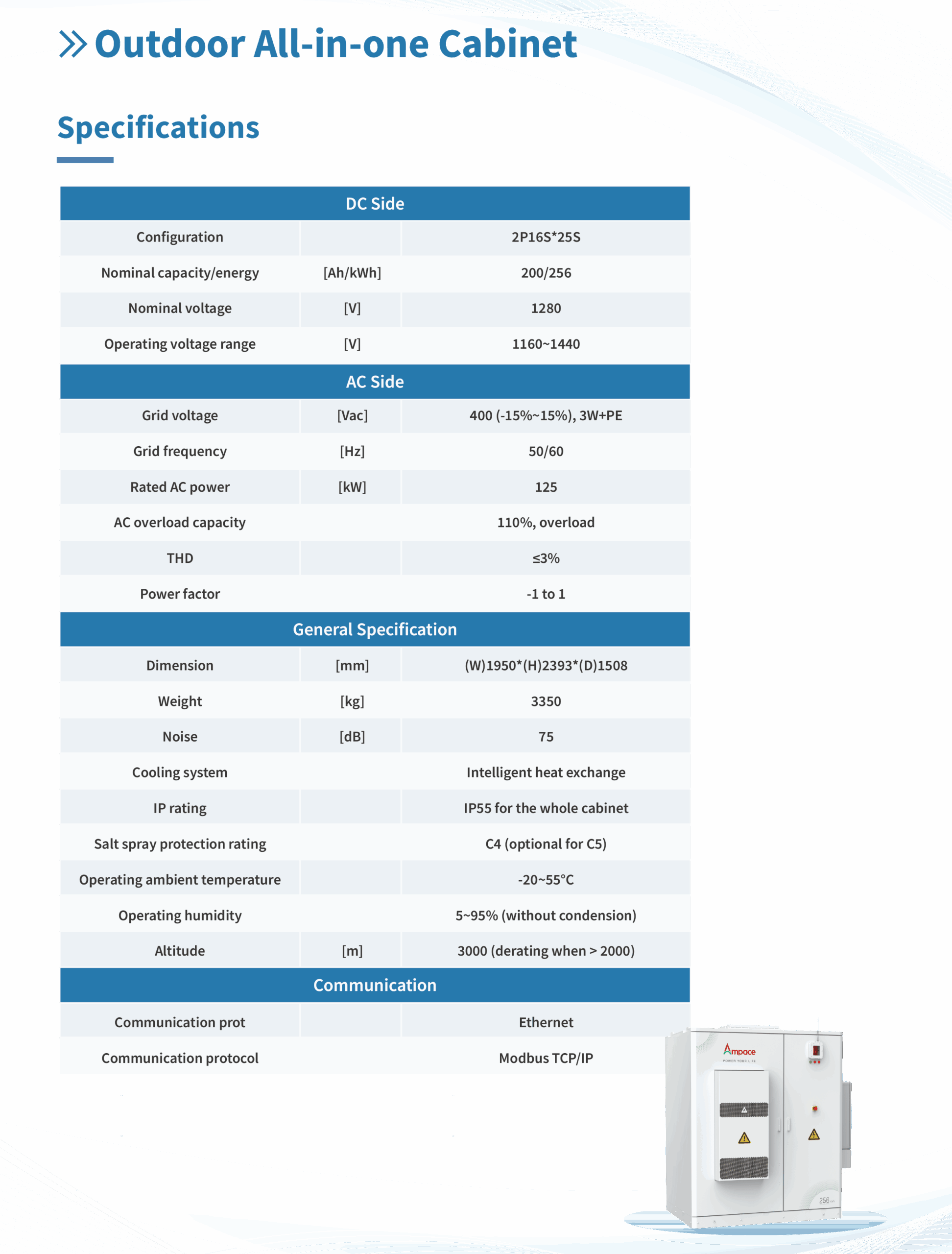

UniC C5
Outdoor All-in-one Cabinet
Supports microgrid, peak-shaving, demand response, VPP and other applications in schools, shopping malls, hospitals, factories and other places
DC Side Specifications
| Item | Specifications |
|---|---|
| Configuration | 2P16S*25S |
| Nominal capacity (Ah) | 200 |
| Nominal energy (kWh) | 256 |
| Nominal voltage (V) | 1280 |
| Operating voltage range (V) | 1160~1440 |
AC Side Specifications
| Item | Specifications |
|---|---|
| Grid voltage (Vac) | 400 (-15%~15%), 3W+PE |
| Grid frequency (Hz) | 50/60 |
| Rated AC power (kW) | 125 |
| AC overload capacity | 110, overload |
| THD | ≤ 3% |
| Power factor | -1~1 |
General Specifications
| Item | Specifications |
|---|---|
| Dimension (mm) | (W)1950*(H)2393*(D)1508 |
| Weight (kg) | 3350 |
| Noise (dB) | 75 |
| Cooling system | Intelligent heat exchange |
| IP rating | IP55 |
| Salt spray protection rating | C4 (optional fo C5) |
| Operating ambient temperature | -20~55℃ |
| Operating humidity | 5~95% (without condension) |
| Altitude (m) | 3000 (derating when >2000) |
| Communication prot | Ethernet |
| Communication protocol | Modbus TCP/IP |
