EnerOne

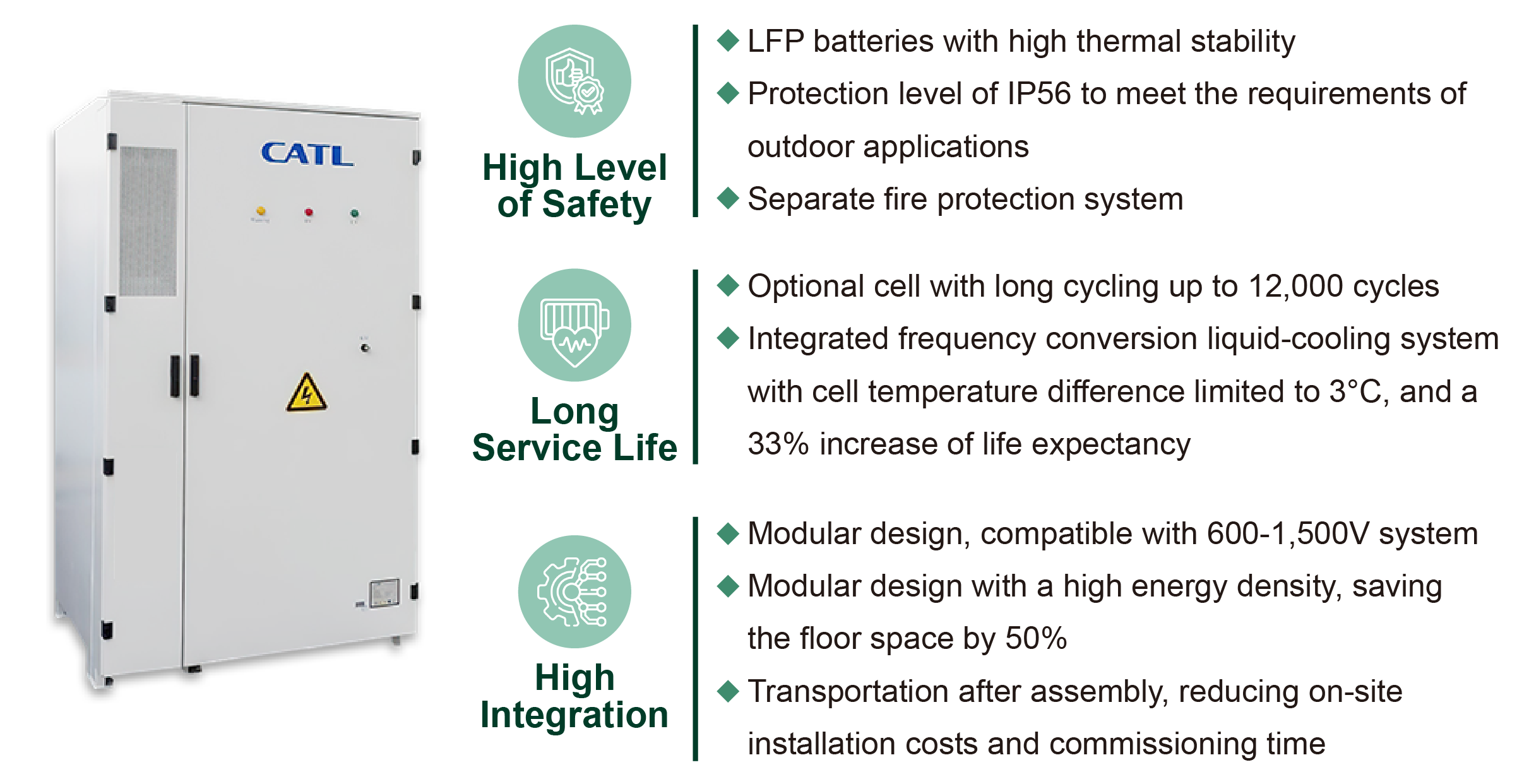

Outdoor Battery Cabinet
Supports microgrid, peak-shaving, demand response, assist in the connection of renewable energy to the grid, stabilize volatile energy and reduce instantaneous power changes, and participate in AFC services, VPP and other applications in schools, shopping malls, hospitals, factories and other places.

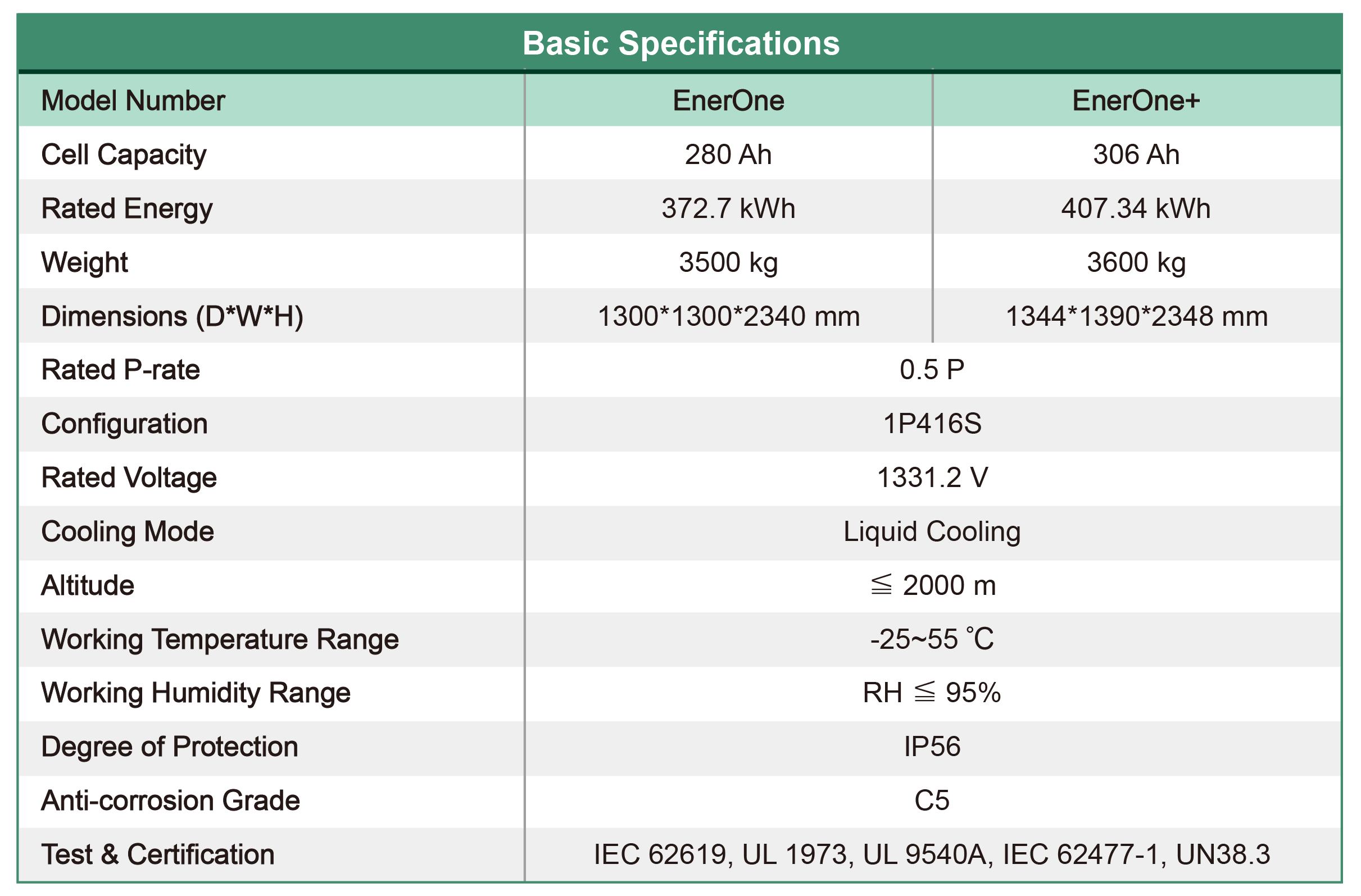

Battery Cabinet Specifications
| Item | Specifications |
|---|---|
| Configuration | 1P416S |
| Cell capacity (Ah) | 280 |
| Nominal CP-rate (CP) | 0.5 |
| Nominal voltage (V) | 1331.2 |
| Nominal energy (kWh) | 372.7 |
| Dimension (mm) | (W)1300*(H)2340*(D)1300 |
| Weight (kg) | 3500 |
| Cooling system | Intelligent liquid cooling |
| Altitude (m) | 2000 |
| Operating ambient temperature | -25~55℃ |
| Operating humidity | ≤ 95% |
| IP rating | IP66 |
| Salt spray protection rating | C5 |
| Certification | IEC62619/UL1973/UL9540A/IEC62477-1/UN38.3 |
